Eight-Channel Technology

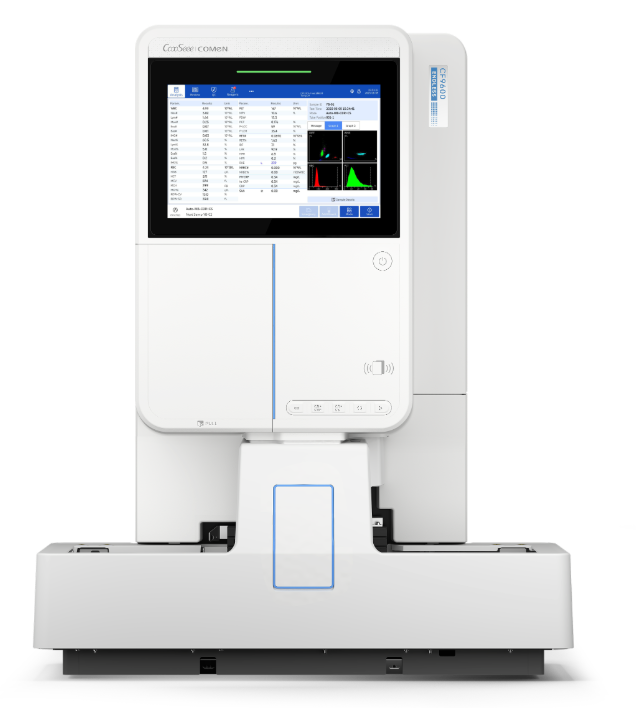

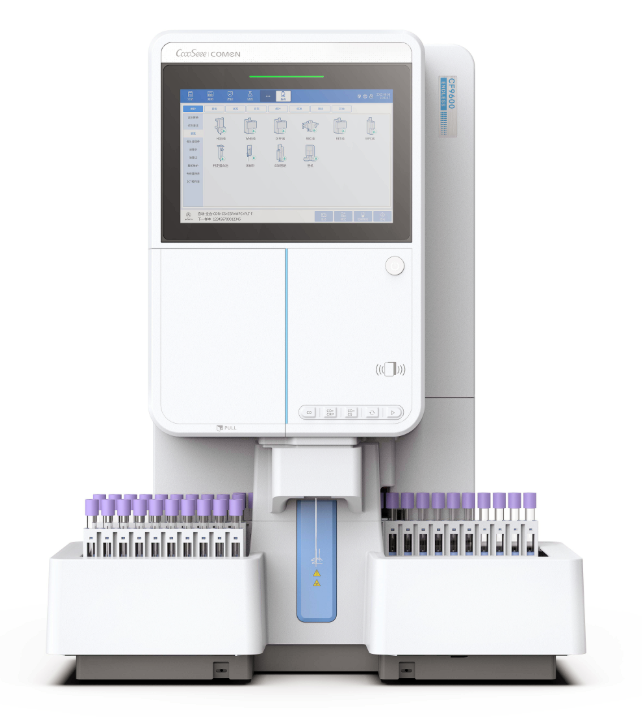

The CF9600 is an innovative multi-channel analyzer that revolutionizes diagnostic testing by consolidating eight key channels—WNB, DIFF, RET, CRP, SAA, WPC, PLT-F and ESR—into a single platform. It overcomes the limitations of traditional single-function analyzers, such as limited capabilities and low efficiency. The system provides comprehensive data spanning blood cell analysis, inflammation marker testing and coagulation function assessment, offering a holistic view from the microscopic cellular level to the overall physiological state. This delivers multi-dimensional, all-encompassing patient data for clinical decision-making.

WNB、DIFF、WPC

CRP、SAA

PLT-F

RET

ESR

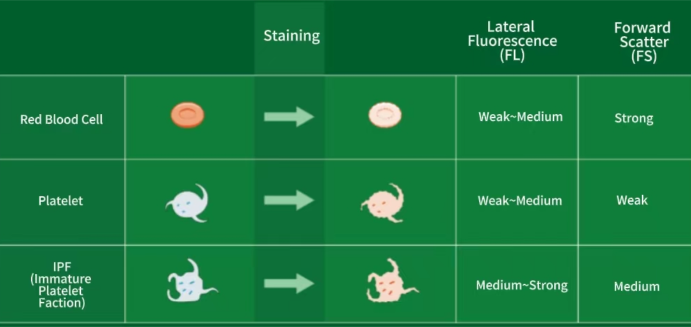

PLT-F Channel

The CF9600 utilizes specific fluorescent dyes that precisely target mitochondrial DNA (MtDNA) and small vesicular RNA within platelets, while the reticulocyte (RET) fraction remains largely unstained. Upon laser excitation, the stained platelets emit a unique fluorescent signal. By combining two-dimensional analysis of forward scatter (FS) and lateral fluorescence (FL), a high-precision platelet identification model is established. This significantly enhances the anti-interference capability and accuracy of platelet counting, demonstrating irreplaceable value in scenarios involving low platelet counts, giant platelets, or interference from red blood cell fragments.

In the field of blood testing, the accuracy of platelet counting is critical for clinical decision-making. However, traditional methods often struggle with complex sample conditions.

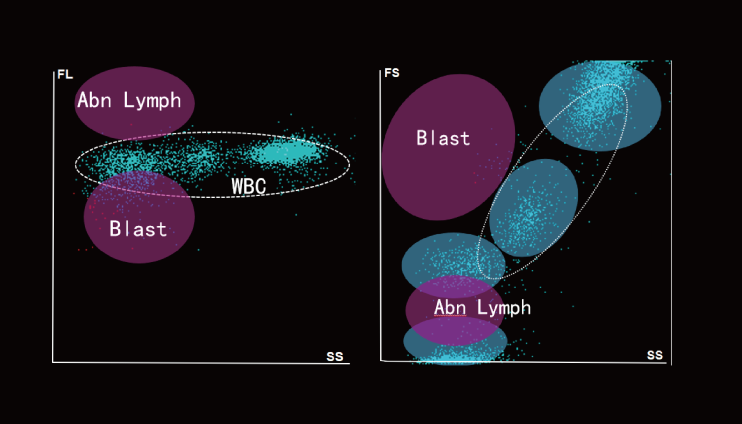

WPC Channel

The WPC channel is primarily used to identify blast cells and abnormal lymphocytes, thereby enhancing the accuracy of white blood cell (WBC) differential counting.

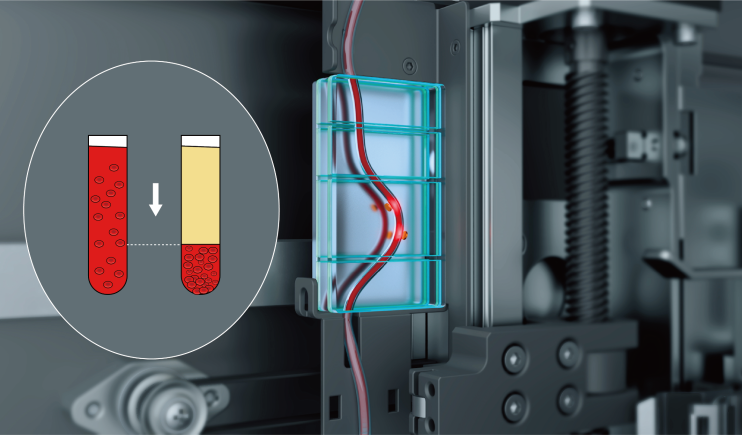

ESR Channel

The CF9600 features a dedicated, automated ESR channel that replaces the manual Westergren method. Utilizing high-precision optics and a proprietary algorithm, it achieves a maximum throughput of 75 tests per hour while maintaining an exceptional correlation (r ≥ 0.95) with the reference method. This represents the industry's fastest processing speed for a dedicated ESR module.

The CF9600 delivers six key results—CBC + RET + CRP + SAA + ESR + NRBC—with a single tube of blood in one operation. This multi-functional capability breaks through the limitations of traditional multi-analyzer setups, which require multiple machines, tubes and procedures. It thereby achieves highly efficient sample utilization and a significant optimization of the testing workflow.

Enhanced Speed & Efficiency

Maximum throughput of 110 tests/hour. The 6-in-1 testing panel shortens TAT, with STAT results available in ≤30 minutes, effectively reducing peak-hour backlogs.

Optimized Cost-Effectiveness

One reagent kit for all six tests cuts reagent costs. Automatic workflow reduces manual errors and reflex rates, lowering the total cost of ownership.

Assured Quality & Reliability

A closed-tube system prevents cross-contamination. A high-precision optical system ensures accurate cell classification and counting.

Clinical Empowerment & Patient Care

A consolidated 6-in-1 report offers "one-stop" diagnostic data, spares patients repeated venipuncture, and is especially friendly to children and the elderly.

High Throughput

Automatic Quality Control Unattended Operation

QR code scanning for automatic target value entry, eliminating manual input and errors to boost efficiency.

Supports mixed QC sample loading, with intelligent recognition and automatic data generation for effortless operation.

Optical Upgrade & Process Iteration

Equipped with the Tosoh quartz flow cell

The CF9600 incorporates a Tosoh quartz flow cell, an industry-leading optical component boasting superior craftsmanship and stable performance. This advanced component is instrumental in enabling the system to achieve top-tier detection capabilities.

Redefined Experience & Intelligent Interaction

Reagent Refrigeration Chamber

Low-temperature storage for reagents.

Automatic Card-Swipe Recognition

Streamlines reagent replacement by eliminating manual data entry.

One-Touch Smart Switching

The screen powers on automatically with the main system. Shutdown includes an optional, immediate probe wash maintenance cycle.

High-Value SAA

For high-value SAA exceeding the linear range of 350 mg/L, it automatically initiates an in-system dilution and re-test using a high-precision dispensing mechanism, ensuring accurate results free from manual error.

Low-Value WBC

For low WBC counts, it automatically activates a multiplication mode that triples the statistical volume. Integrated with a smart algorithm, this ensures precise detection of low-concentration samples, reduces random errors, and improves classification accuracy.

High Efficiency & Precision, Labor Liberation

Automatic Capillary Blood

Body Fluid Analysis: Automatic cleaning for body fluid samples, which reduces carryover from high-concentration samples and minimizes the risk of contamination.

Automatic Mixing

Automatically mixes 50 capillary blood samples simultaneously and allows random access.

Batch Loading

Features closed-cap piercing and automated mixing to ensure safety and consistency.

Emergency Priority

A dedicated stat position enables direct testing of capillary blood for urgent cases.

Smart Recognition

Automatically identifies sample types to support mixed loading of different tube racks.

Ultra-Micro Volume

Requires only 26μL (CD mode) or 35μL (CDC mode) of capillary blood per test.

Intelligent Platform & Data Connectivity

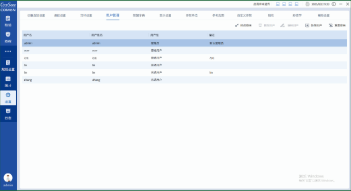

Multi-User Online Processing

Supports up to 20 concurrent users for reviewing and processing data, enhancing efficiency and shortening TAT.

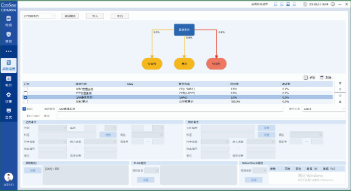

Intelligent Review

Customizable rules enable auto-verification, reflex testing and expert alerts for abnormal samples. Workflow Optimization: Facilitates online sample testing, statistical analysis and rule updates to meet dynamic lab needs.

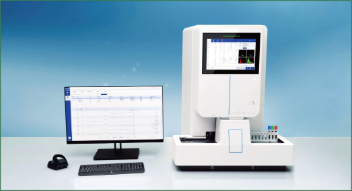

Standard Equipment, No Extra Development Needed

Each instrument comes standard with Comen's self-developed data management platform and enables seamless connectivity to HIS and LIS systems, ensuring efficient data sharing.

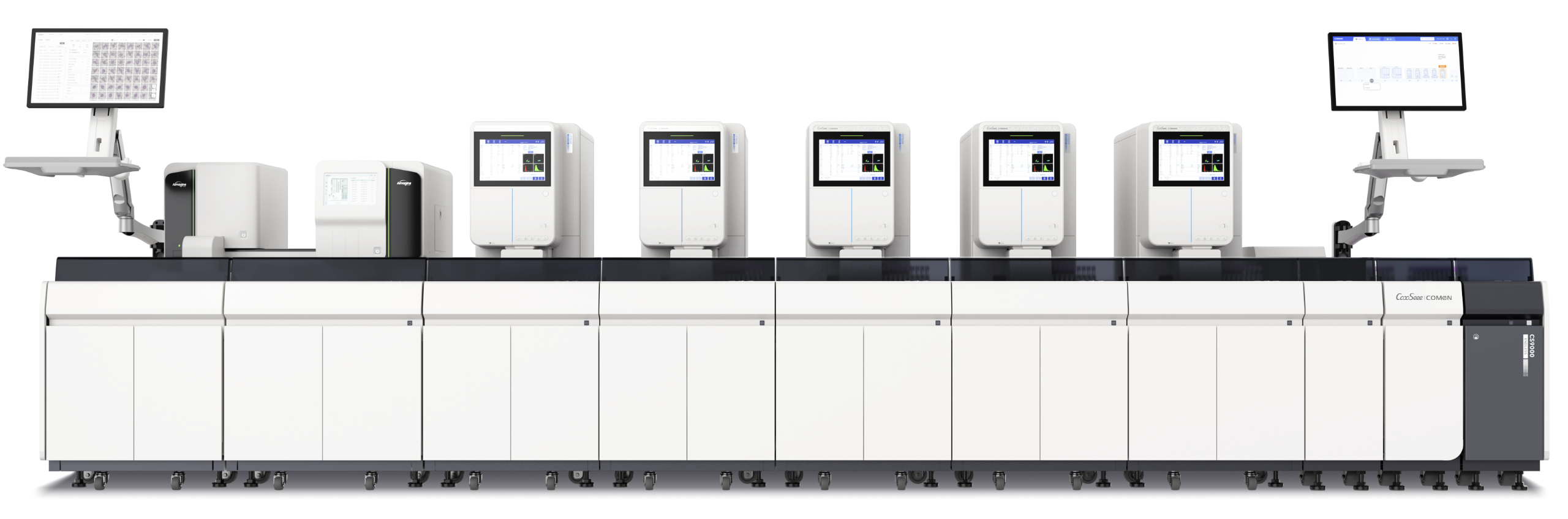

High-Efficiency Connectivity for Expanded Automation

The CF9600 can be seamlessly integrated into a fully automatic hematology workflow. Building on an intelligent tube rack management system, it connects all processes—including routine testing, inflammation panels, automatic reflex testing and slide preparation/staining—into a single, end-to-end automated stream. With precision, efficiency and speed as its core advantages, this system establishes a truly unattended operational model that significantly reduces sample turnaround time.
